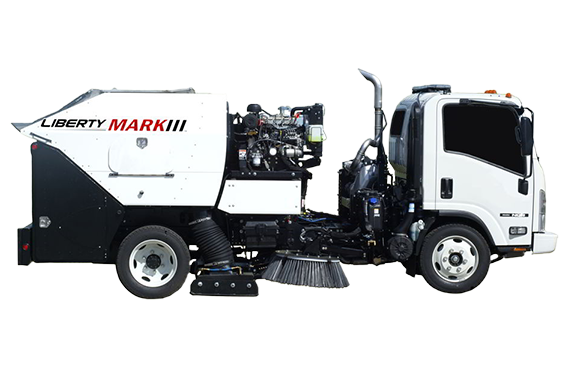

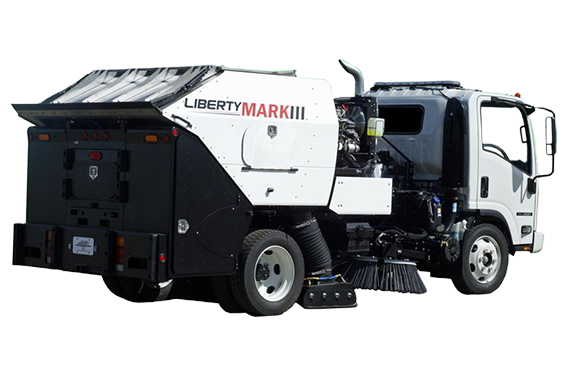

DEBRIS HOPPER
Capacity 4.35 cubic yards/ 3.32 cubic meters
Construction Stainless Steel
Exterior Finish Vinyl Wrap or Polished Stainless Steel
Interior Finish Uncoated Stainless Steel
Suction Tube Diameter 12”
Suction Tube Material Replaceable, Polyethylene
Engine Shroud (optional) Stainless Steel
Inspection Doors 1 on each side
Inspection Door Opening 13.7” x 26”

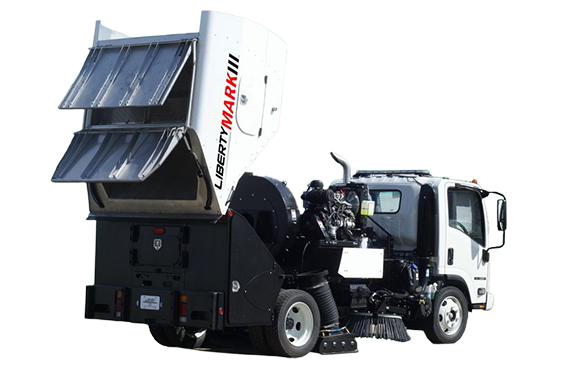

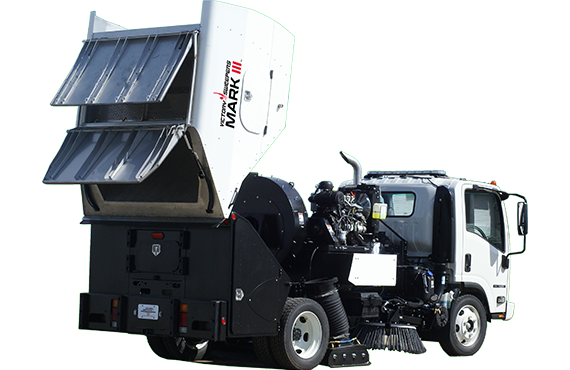

Dump Type Hydraulic
Dump Cylinders 2 @ 4” x 16”
Dump Height 70”
Dump Controls Electric In-cab
Separator Screen Construction 2 pc Stainless Steel
Separator Screen Maintenance Hydraulic assist access door
AUXILIARY ENGINE
Type/fuel 4-cycle / Diesel
Make KUBOTA
Model V3307 - CR - TIE4
Number of Cylinders 4
Displacement 203.3 cu in/ 3.331 litres
Bore 3.7 in/ 94 mm
Stroke 4.724 in/ 120 mm
Brake Horsepower 74.3 BHP/ 55.4 kW
Oil Filter Spin on
Air Filter 2 pc / Dry type w/ safety element
Safety Shutdown Temperature and Oil Pressure
IMPELLER
Diameter 30”
Type 10 blade backward inclined high pressure
Drive 3VX 6-Groove banded belt
Construction 2 Abrasion resisting grades of keyed welded steel
Mounting 2 Sealed & relubable ball bearings
Housing Construction Welded steel
Housing Type Unobstructed for open airflow
Liner Replaceable corded rubber
Liner Bolts Coated for increased abrasion resistance
HYDRAULIC SYSTEM
Pump Type Fixed displacement gear
Drive Direct
Pump Capacity 5 GPM
System Filtration 10 micron
Reservoir Capacity 16 gallons
Hydraulic Back-up System (optional)
Pump Type 12 volt DC
Controls In cab
Purpose Powers all hydraulic functions without auxiliary engine
DUST SUPPRESSION
Water Capacity 105 gallons
Tank Construction Polyethylene
Pump Type 12 volt, Diaphram
Controls In cab
CURB BROOM
Controls Electric in-cab
Diameter 39”
Drive Direct - Hydraulic motor
Tilt Hydraulic in-cab
Suspension Spring
Bristle Type Vertical digger
Bristle Material Oil tempered steel wire
Bristle Length 26”
SWEEPING HOOD
Type Regenerative / Blast Orifice
Towing Type 2 AdjustableTrailing arms
Suspension 4 Springs
Up Storage Rubber stops
Material Welded steel
Pressure Tube 12” Diameter AR steel
Suction Tub 12” Diameter AR steel
Hood Width 80”
Flaps 3 Total
Skids Double row
Skid Material Steel with virgin Tungsten Carbide
“HOODS UP”’ (Anti-plowing) Independent hydraulics
“HOODS UP” Controls Electric in-cab
CONTROLS
Type Electric
Location In-cab
Circuit Breakers Individually resettable
Switches Rocker
Monitoring Hour meter, Tach, Oil Pressure, Coolant Temp, Volts
STANDARD CHASSIS
Make Isuzu
Model NQR HD
Capacity / GVWR 17,950 lbs
PROPULSION ENGINE
Type/Fuel 4 Cycle / Diesel
Model Isuzu 4HK1-TC turbo intercooled
Cylinders 4
Displacement 5.2 L / 317 cid
Horsepower 215 hp @ 2,500 rpm
Torque 452 lb-ft @ 1,850 rpm
Starter 12v
Alternator 140 amp
Battery dual - 750 CCA
Oil Filter Spin-on
Air Filter Dry-type
TRANSMISSION
Make Aisin A465id 6-speed double overdrive
Type Automatic
Speeds 6 Forward, 1 Reverse
TIRES AND WHEELS
Configuration 2 Front, 4 Rear
Tire Type Tubeless / Steel belted radials
Tire Size 225/70R19.5F
Wheels Steel disc / one piece
BRAKES
Type Front disc / Rear drum w/ Exhaust Brake
Power Vacuum/Hydraulic with 4-channel ABS
Parking Mechanical / Trans mounted
CAB
Type Cab over Engine
Engine Access Manual tilt
Construction Steel
Air Conditioning Standard
Radio Standard
Windows Electric
Door Locks Electric
Steering Integral Power
WEIGHTS AND DIMENSIONS
Total Empty Weight 11,050 lbs
Chassis Only Curb Weight 7,150 lbs
Wheel Base 132”
Turning Diameter (curb to curb) 38’ 7”
Overall Length 237”
Overall Height 99”
Overall Width 92”
Sweeping Width (hood only) 80”
Sweeping Width (hood and left broom) 101”
Sweeping Width (hood and dual brooms) 116”
