Cab Mounted Parking Lot Sweepers - Victory Sweepers, USA

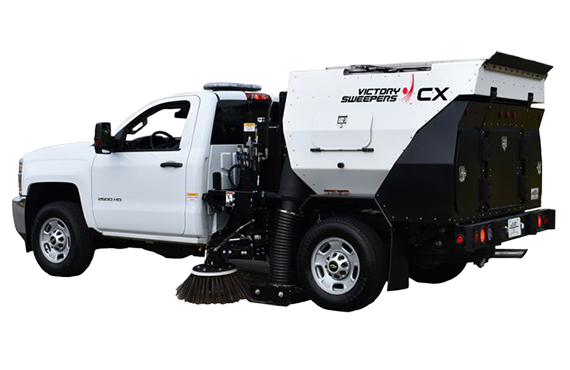

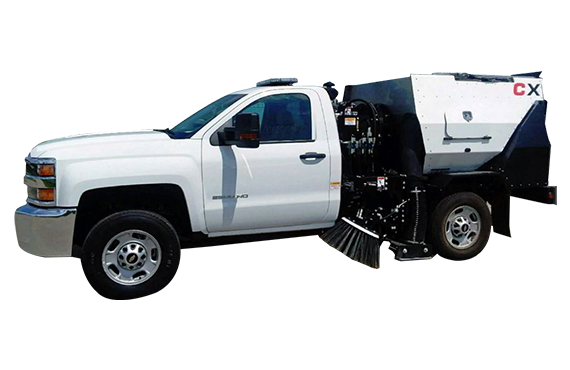

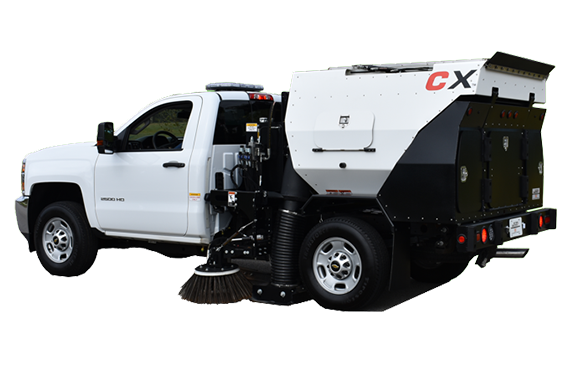

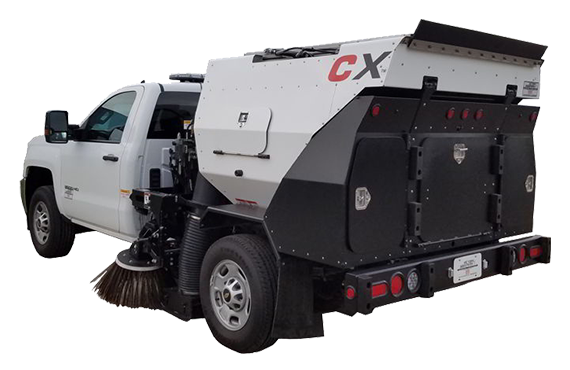

Victory’s CXG model is a low-profile parking lot sweeper with a 70-inch dump height that is mounted onto a conventional chassis. The CXG utilizes a gasoline-powered, 24.9 hp Honda auxiliary engine. When coupled with the Victory 8-bladed, backward-inclined, 20- inch diameter blower fan the result is an exceptional capability to perform parking lot sweeping. The CXG is designed to enable the operator to sweep typical debris found in parking lots as well as some heavier rock and sand. Our CXG is typically mounted onto either a Ford F250 or GM 2500 series chassis. Both choices ensure adequate carrying capacity; however, consult with us for other mounting options.

The CXG features a 2.7 cubic-yard debris hopper constructed from non-magnetic 304 stainless steel. Large inspection doors are provided on each side of the hopper as well as a full opening top door that allows easy access when dumping and for cleaning. A 39-inch diameter gutter broom with electric in-cab tilt mounted onto the left side of the sweeper and is standard. The CXG’s full-width blast and suction sweeping head is capable of reverse sweeping and includes Victory’s exclusive HOODS-UP SM feature, which allows the operator to raise the front of the sweeping head to allow efficient pickup of bulk trash, leaves and larger debris. Carbide drag shoes, safety chains and rubber head stops are provided.

The 50-gallon dust control system features a 12- volt diaphragm pump with filter and is outfitted with heavy-duty push lock hoses and brass spray nozzles positioned at the broom, head and inside the hopper. A centrifugal, self-cleaning dust separator is located inside the hopper to remove fine dust particles before they can enter the HARDOX® steel blower fan, which is guaranteed against wear-out for 5 years or 5000 hours.

The CXG’s rubber-lined blower housing features an in-cab leaf and light debris diverter system. The hydraulic system is belt-driven from the auxiliary engine and includes a 10-gallon reservoir with a10-micron spin-on filter, labeled manual override directional valves, pressure ports w/gauge and an optional 12-volt hydraulic backup system. The small central control console has heavy-duty rocker style switches, an hour meter, resettable circuit protection and engine throttle. Heavy-duty, 3 mil vinyl wrap is used on the hopper’s exterior to ensure your sweeper looks good for years.

When you want a low profile parking area sweeper designed for daily use over the course of many years, choose the Victory CXG.

Brochure
Video
Request a Quote

DEBRIS HOPPER

DEBRIS HOPPER
Capacity	2.7 cubic yards/ 2.06 cubic meters
Construction	Stainless Steel
Exterior Finish	Vinyl Wrap
Interior Finish	Stainless Steel
Suction Tube Diameter	10”
Suction Tube Material	Replaceable, Polyethylene
Inspection Doors	2,(1 on each side)
Inspection Door Opening	9.75” x 20”
Dump Type	Hydraulic
Dump Cylinders	2 @ 3” x 10”
Dump Height	70”
Dump Controls	Electric In-cab
Separator Screen Construction	Stainless Steel
Separator Screen Maintenance	Hydraulic access door

AUXILIARY ENGINE

AUXILIARY ENGINE
Type/fuel	4 Cycle / Gas
Make	Command PRO by Kohler
Model	5434 Air Cooled
Number of Cylinders	2
Displacement	896 cc
Bore	3.37 in/85.6 mm
Stroke	3.07 in/78 mm
Brake Horsepower	31 BHP/23 kW
Oil Filter	Spin on
Air Filter	2 pc / Dry type w/ safety element
Oil Cooler	Included

IMPELLER

IMPELLER
Diameter	20”
Type	8 blade backward inclined high pressure
Drive	Multi-groove banded belt
Construction	2 Abrasion resisting grades of keyed welded steel
Mounting	2 Sealed & relubable ball bearings
Housing Construction	Welded steel
Housing Type	Unobstructed for open airflow
Liner	Replaceable corded rubber
Liner Bolts	Coated for increased abrasion resistance

HYDRAULIC SYSTEM

HYDRAULIC SYSTEM
Pump Type	Fixed displacement gear
Drive	Belt
Pump Capacity	5 GPM
System Filtration	6 micron
Reservoir Capacity	13 gallons
Hydraulic Back-up System (optional)
Pump Type	12 volt DC
Controls	In cab
Purpose	Powers all hydraulic functions without auxiliary engine

DUST SUPPRESSION

DUST SUPPRESSION
Water Capacity	50 gallons
Tank Construction	Polyethylene
Pump Type	12 volt, Diaphram
Controls	In cab

CURB BROOM

CURB BROOM
Controls	Electric in-cab
Diameter	26”
Drive	Direct - Hydraulic motor
Tilt	Adustable
Suspension	Spring
Bristle Type	Vertical digger
Bristle Material	Oil tempered steel wire
Bristle Length	26”

SWEEPING HOOD

SWEEPING HOOD
Type	Blast - Suction / Right to Left
Towing Type	2 Trailing arms
Suspension	4 Springs
Up Storage	Rubber stops
Type	1 piece
Material	Welded steel
Pressure Tube	10” Diameter AR steel
Suction Tube	10” Diameter AR steel
Hood Width	82”
Skids	Single row
Skid Material	Steel with virgin Tungsten Carbide

CONTROLS

CONTROLS
Type	Electric
Location	In-cab
Circuit Breakers	Individually resettable
Switches	Rocker
Monitoring	Hour meter

STANDARD CHASSIS

STANDARD CHASSIS
Make	Chevrolet
Model	C2500HD
Capacity / GVWR	9,300 lbs

PROPULSION ENGINE

PROPULSION ENGINE
Type/Fuel	4 Cycle / Gas
Cylinders	8
Displacement	6.0 L / 365 cid
Horsepower	350 hp @ 5400 rpm<
Starter	12v
Alternator	125 amp
Oil Filter	Spin-on
Air Filter	Dry-type

TRANSMISSION

TRANSMISSION
Type	Automatic
Speeds	6 Forward, 1 Reverse
ADDITIONAL CHASSIS OPTIONS
Make /Model	Dodge / Promaster
Make /Model	Ford / F250
Make /Model	Isuzu / NPR
Make /Model	others upon approval

WEIGHTS AND DIMENSIONS

WEIGHTS AND DIMENSIONS
Total Empty Weight	9,900 lbs
Chassis Only Curb Weight	5,022 lbs
Wheel Base	109”
Turning Diameter (curb to curb)	33’ 6”
Overall Length	214”
Overall Height	92”
Overall Width	92”
Sweeping Width (hood only)	82” or 90”
Sweeping Width (hood and left broom)	101”
Sweeping Width (hood and dual brooms)	116”
